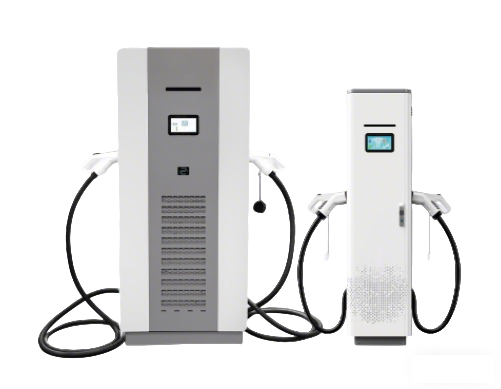

160/240/320KW DC Charging Pile (One-to-One)
Main FunctionsThis one-to-one high-power DC charging pile, with an output power of 160/240/320kW, is specially designed for light heavy-duty trucks and can meet their fast charging needs.
Application ScenariosPrimarily for the commercial operation of charging stations.
Application ScenariosPrimarily for the commercial operation of charging stations.
Product Details
Related Cases
Related Post
Specifications
Product Model – YXDCLT*1000D
Rated Power – 160 / 240 / 320 kW
Dimensions – 800 × 678 × 1840 mm
Input Voltage – AC 380V ±15%
Input Frequency – 45 ~ 65 Hz
Output Voltage – 200 ~ 1000 VDC
Max Output Current per Channel – 0 ~ 250 A
Cable Length – 5m (standard), optional
Charging Capacity – Quad charging
Metering Accuracy – Class 1
Peak Efficiency – ≥ 96.5%
Power Factor – ≥ 0.99 (at 50% load or above)
HMI (Human-Machine Interface) – 7-inch LCD color touch display
Payment Methods – RFID card payment / QR code payment
Startup Methods – RFID card / QR code scanning / VIN authentication
Product Features
- One-to-one
- Light heavy-duty trucks
- Fast charging / Quick top-up charging
- Comprehensive multi-layer safety protection
- Latest national standards
