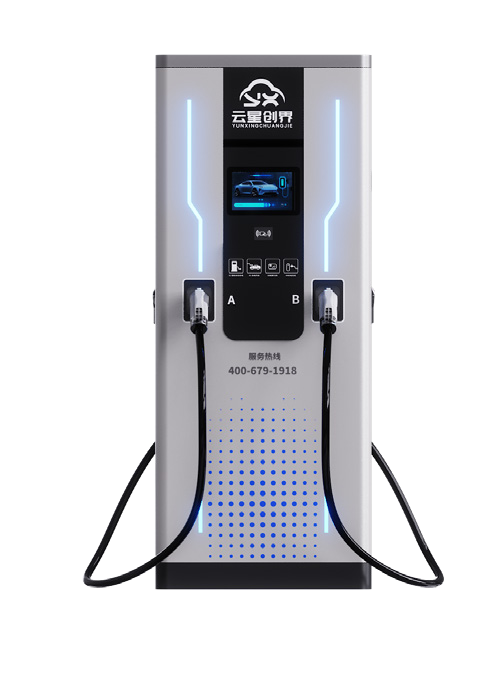

480-600kW DC Charging Pile
Main Functions
This high-power DC charging pile, with an output power ranging from
120kW/160kw/240 kW, is specially designed for new energy heavy-duty trucks
to meet their fast charging needs.
Applications Primarily for the commercial operation of charging stations.
Applications Primarily for the commercial operation of charging stations.
Product Details
Related Cases
Related Post
DC FAST CHARGING PILE
Specifications
Product Model: YXDCSH2001000S
Rated Power: 120/160/240 kW
Dimensions (L×W×H): 740 × 511 × 1730 mm
Input Frequency: 50 Hz
Output Voltage: 200–1000 VDC
Maximum Output Current per Output Channel: 250 A
Cable Length: 5 m (optional)
Charging Configuration: 1 / 2 Charging Ports
Metering Accuracy: Class 1
Efficiency: ≥ 95.2%
Power Factor: ≥ 0.99 (at load >50%)
HMI: 7-inch LCD color touch screen
Payment Methods: RFID card / QR code payment
Product Features
New energy heavy-duty trucks
Fast charging / Quick top-up charging
4G connectivity
Comprehensive multi-layer safety protection
Latest national standards
